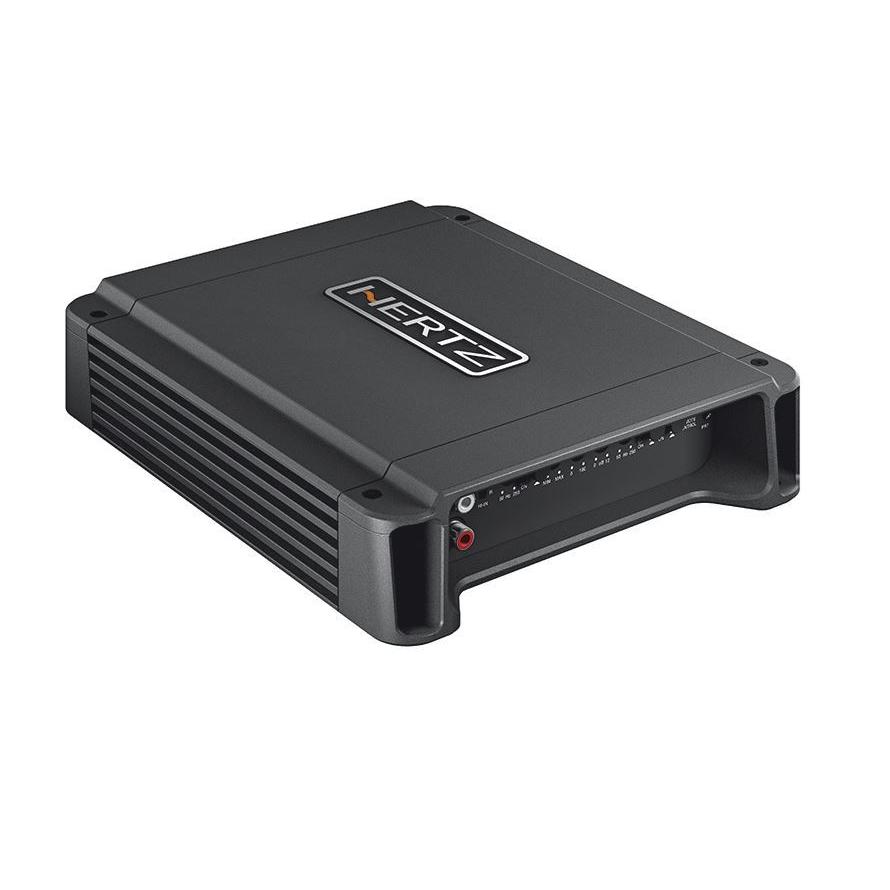

Hertz Compact Power HCP 1D
Κωδικός : 02.02.0001
269,00 €
Άμεσα διαθέσιμο
| Channels | 1 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 2 x 25 A |
| Idling current (power ON/OFF) | 1 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): |
25 A |
| Remote In: | 7 ÷ 15 VDC - 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| AMPLIFIER STAGE | |
| Distorsion - THD (100 Hz @ 4 Ω): | 0.2 % |
| Bandwidth: | 10 ÷ 22k Hz |
| S/N Ratio (A weighted @ 1 V): | 100 dB |
| Damping factor (100 Hz @ 4 Ω): | 80 |
| Pre-In sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN): | 2 Ω |
| Max size (mm / in.): | 215 x 190 x 50 / 8.46 x 7.48 x 1.97 |
| Weight (kg / lb.): | 1.94 / 4.27 |
| Adjustable Crossovers | yes |
| Output Power (RMS) @ 14.4 VDC, THD 1% | |
| 1 Ch: | 320 W x 1 (4 Ω) |
| 1 Ch: | 550 W x 1 (2 Ω) |
| Output Power (RMS) @ 14.4 VDC, THD 10% | |
| 1 Ch: | 380 W x 1 (4 Ω) |
| 1 Ch: | 700 W x 1 (2 Ω) |
| CEA 2006-A Ratings: | |
| RMS Power (4 Ω, ≤ 1 %THD + N, 14.4 V) |
300 W x 1 Ch |
| S/N Ratio (ref. 1 W output): | 80 dBA |
| Total Power RMS | 1400 W |
