Alpine KTA-450 4-channel Amplifier (Head Unit Power Pack)
Κωδικός : KTA-450
219,00 €
Διαθεσιμότητα : Διαθέσιμο από 1-3 ημέρες
- Amplifier Type: Class-D (Digital)
- Channel Design: 4/2 Channel (3 Channel configuration not possible)
- DIP Switches
- RCA and Speaker Level Inputs
- Crossover: Adjustable High-Pass Filter (HPF)
- Gain Control: Front / Rear Adjustable

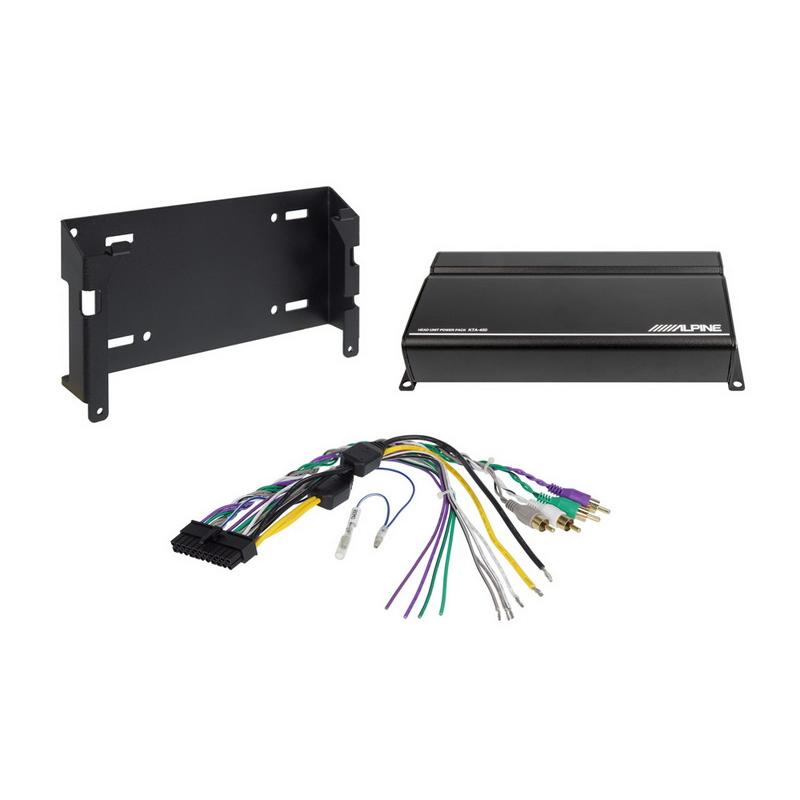

- Included Power-Stack bracket and screws for back-mount to iLX-W650BT
- Included cable harness
SPECIFICATIONS
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 45W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 50W
- Bridged, 4 Ohms, 14.4V: 2 x 100W
DPP (Dynamic Peak Power) Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 100W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 100W
Sound Tuning
- Crossover: Selectable HPF: 60, 80, 120Hz (-12dB/oct) on front and rear channels
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Frequency Response (+0/ -3dB: 1W into 4 Ohms): 15Hz – 50kHz
- THD+N (@ 10W into 4 Ohms): <0.2%
- S/N Ratio: AES-17, Ref: 1W into 4 Ohms: >85dB
- Weight: 0.6kg
Dimensions
- Width: 89mm
- Height: 36mm (39mm with attached universal bracket)
- Length: 181mm (198mm with attached universal bracket)
