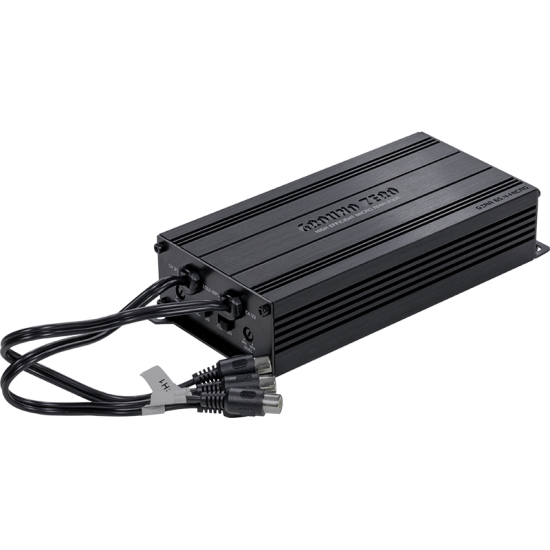

High-efficient class D 4-channel amplifier

ultra-compact 4-channel ISO-amplifier for plug and play OEM installations

• Micro 4-channel ISO-amplifier
• SMD components
• Class D technology
• Fixed high-pass filter for easy setup
• Easy integration of additional mono amplifiers
• Stable power supply
• Compact heatsink with engraved Ground Zero lettering
• High-level input with auto-on function
• Incl. ISO harness

• Type	Class D amplifier
  Channels	4
  Output Power (@ 4Ω)	4x 65 Watts RMS
  Output Power (@ 2Ω)	4x 75 Watts RMS
  Output Power (@ 4Ω) bridged	2x 150 Watts RMS
  max. Output Power	340 Watts
  Frequency Response	10 Hz – 22 kHz
  HPF / LPF / BPF	● / ● / ●
  Bass Boost / Phase switch	○ / ○
  High level input / Auto-on	● / ●
  Remote Control	○
  BIAS Setting	○
  Linkmode	○
  Dimensions (w x l x h) heat sink	82 x 185 x 40 mm / 3.23″ x 7.28″ x 1.57″
