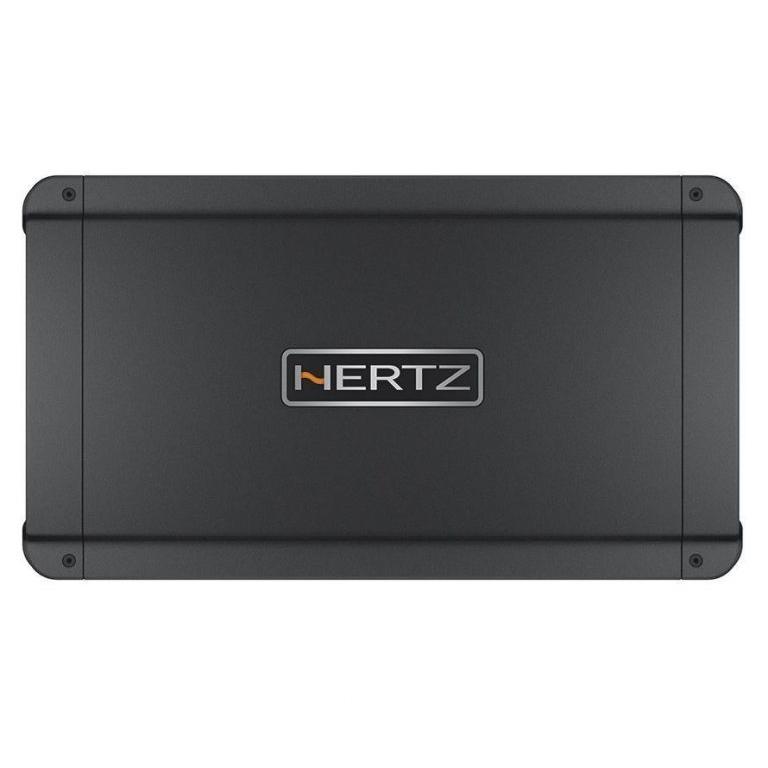

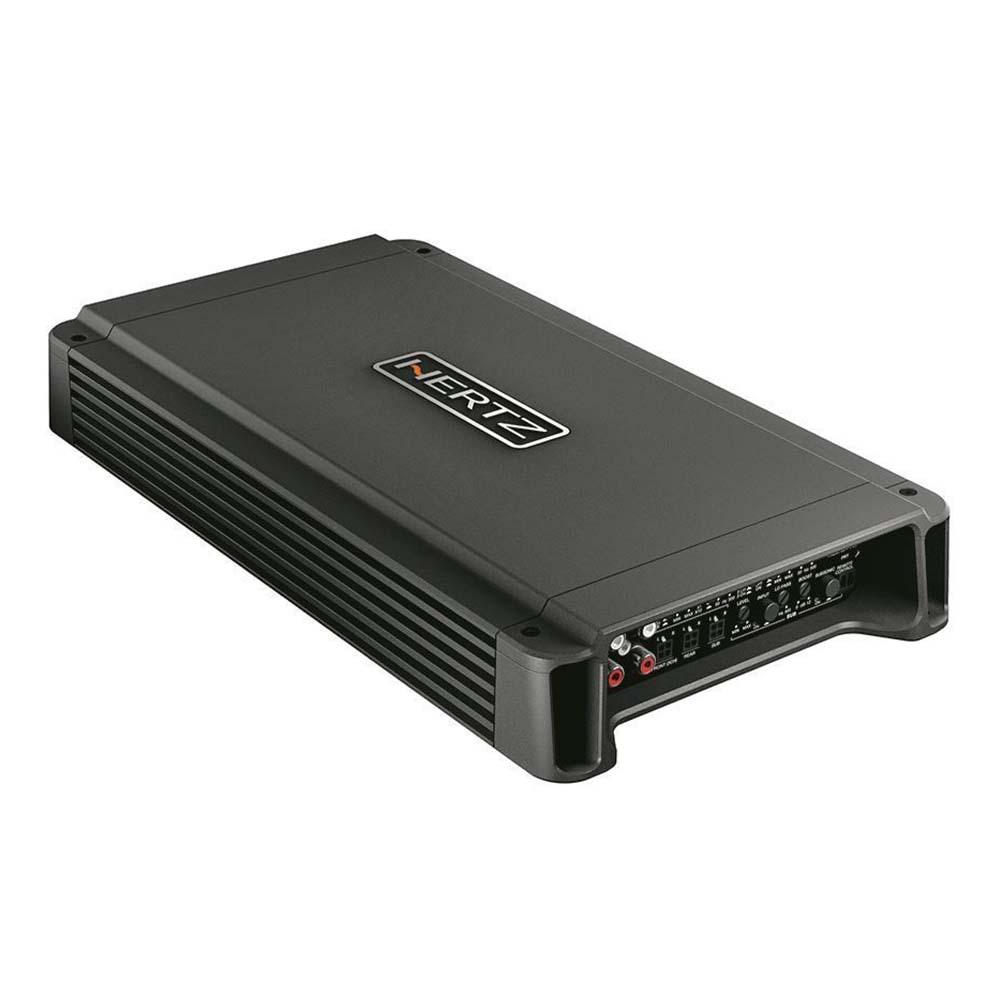

Ενισχυτής Marine - Hertz HCP 5MD 24V
Κωδικός : 19.0019
644,00 €
579,00 €
-10%
Άμεσα διαθέσιμο
| Channels | 5 - 3 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 22 ÷ 33 VDC / 2 x 15 A |
| ldling current (power ON/OFF): | 1 A / 0.04 mA |
| Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 15 A |
| Remote In: | 7 ÷ 33 VDC - 1 mA |
| ART: | Automatic Remote Turn-OniOff with Speaker-ln |
| AMPLIFIER STAGE | |
| Distorsion - TliD (100Hz @ 4Ω): | 0.02% |
| Bandwidth: | 10 ÷ 50 kHz |
| Bandwidth: | 10 ÷ 500 Hz |
| S/N Ratlo (A welghted @ 1 V): | 100 dB |
| Damping factor (100Hz @ 4Ω) FRONT/REAR: | 100 |
| Damping factor (100Hz @ 4Ω) SUB: |
250 |
| Pre-ln sensitivity: |
0.2 ÷ 5 VRMS |
| Speaker-ln sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN) @5Ch: @3Ch: |
2 Ω 4 Ω + 4 Ω + 2 Ω |
| Max size (mm/in): | 345 x 190 x 50 13.58 x 7.48 x 1.97 |
| Weight (kg/lb): | 3 (6.61) |
| Adjustable Crossovers | yes |
| OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% | |
| 5Ch |
55 W x 4+160 W x 1 (4Ω) |
| 5Ch |
90 W x 4+ 280 W x 1 (2 Ω) |
| 3Ch |
180 W x 2 (4 Ω) +160 W x 1 (4 Ω) |
| 3Ch | 180 W x 2 (4 Ω)+280 W x 1 (2 Ω) |
| OUTPUT POWER (RMS) @ 28.8 VDC, THD 10% | |
| 5Ch |
55 W x 4+160 W x 1 (4Ω) |
| 5Ch |
90 W x 4+ 280 W x 1 (2 Ω) |
| 3Ch |
180 W x 2 (4 Ω) +160 W x 1 (4 Ω) |
| 3Ch |
180 W x 2 (4 Ω)+280 W x 1 (2 Ω) |
| CEA 2006-A RATINGS | |
| RMS Power (4 Ω, ≤ 1 % THD+N,14.4 V): |
50 W x 4 Ch + 150 W x 1 Ch |
| S/N Ratio (ref. 1 W output) | (50 W Ch) 83 dBA (150 W Ch) 85 dBA |
| Total Power RMS | 1500 W |
| lnputs: | PRE IN l SPEAKER IN |
| FRONT Ch. filters FULL: | Yes |
| Hi-Pass: | 50 ÷ 5 kHz @ 12 dB/Oct |
| REAR Ch. filters FULL: |
Yes |
| Hi-Pass: | 50 ÷ 5 kHz @ 12 dB/Oct |
| Band-Pass: | 50 ÷ 500 Hz (Hi) @ 12 dB/Oct 50 ÷ 5 kHz (Lo) @ 12 dB/Oct |
| SUB Ch. filter LO-PASS: | 50 ÷ 500 Hz (Hi) @ 24 dB/Oct |
| SUBSONIC (on/off): | 25 Hz @ 24 dB / Oct |
| BOOST 50 Hz (adjust): | (0÷12) dB |
| Remote Volume Control: | (-50 ÷ 6) dB |
| mm | in | |
| A | 345 | 13.58 |
| B | 321 | 12.64 |
| C | 190 | 7.48 |
| D | 166 | 6.53 |
| E | 50 | 1.97 |
