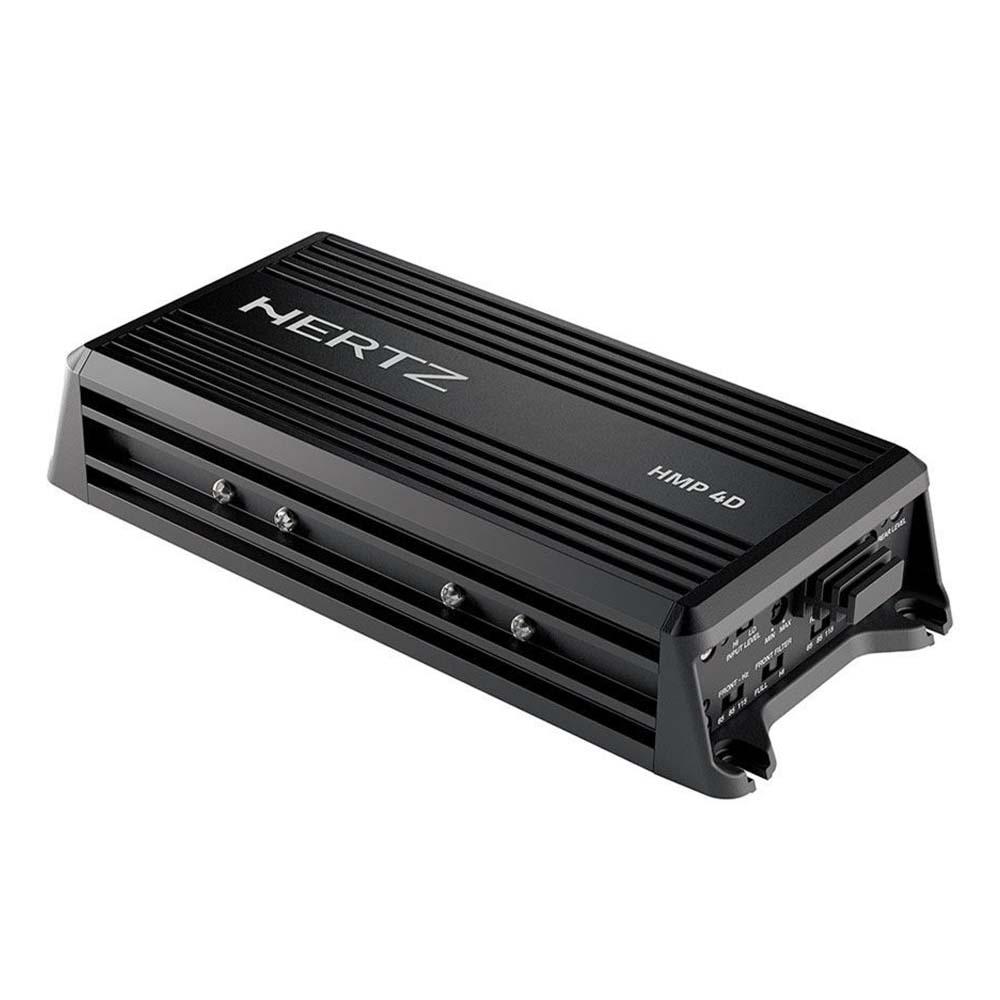

Ενισχυτής Marine – Hertz HMP 4D
Κωδικός : 19.0014
333,00 €
299,00 €
-10%
Άμεσα διαθέσιμο
| Channels | 4 - 2 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 1 x 15 A |
| Idling current (power ON/OFF) | 1.2 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): |
15 A |
| Remote In: | 4 ÷ 15 VDC - 1 mA |
| ART: | Automatic Remote Turn-On/Off |
| AMPLIFIER STAGE | |
| Distorsion - THD (100 Hz @ 4Ω) | 0.2 % |
| Bandwidth: | 10 ÷ 30K Hz |
| S/N Ratio (A weighted @ 1 V): | 95 dB |
| Damping factor (100 Hz @ 4Ω) | 45 |
| Pre-In sensitivity: | LO: 0.2 ÷ 5 V HI: 0.8 ÷ 20 V |
| Load impedance (MIN) @ 4 Ch: @ 2 Ch: |
2Ω 4Ω |
| Max size (mm/in): | 223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71 |
| Weight (kg/lb): |
1.35 / 2.97 |
| Adjustable Crossovers | yes |
| OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%: | |
| 4 Ch |
50 W x 4 (4 Ω) |
| 4 Ch |
65 W x 4 (2 Ω) |
| 3 Ch |
50 W x 2 (4 Ω) + 130 W x 1 (4 Ω) |
| 3 Ch |
65 W x 2 (2 Ω) + 130 W x 1 (4 Ω) |
| 2 Ch |
130 W x 2 (4 Ω) |
| OUTPUT POWER (RMS) @ 14.4 VDC, THD 10%: | |
| 4 Ch |
60 W x 4 (4 Ω) |
| 4 Ch |
75 W x 4 (2 Ω) |
| 3 Ch |
60 W x 2 (4 Ω) + 150 W x 1 (4 Ω) |
| 3 Ch |
75 W x 2 (2 Ω) + 150 W x 1 (4 Ω) |
| 2 Ch |
150 W x 2 (4 Ω) |
| Total Power RMS | 600 W |
| Inputs: | PRE IN |
| FRONT Ch. filters FULL: | Yes |
| Lo-Pass: | 65-85-115 Hz @ 12 dB/Oct |
| REAR Ch. filters FULL | Yes |
| Hi-Pass: | 65-85-115 Hz @ 12 dB/Oct |
| Lo-Pass: | 65-85-115 Hz @ 12 dB/Oct. |
h| mm | in | |
| 223 | 8.78 | |
| 207 | 8.15 | |
| 100,5 | 3.96 | |
| 76 | 2.99 | |
| 43,6 | 1.72 |
